- Size: 1000
- Place of Origin: China
- Brand Name: QINSUN
- Model Number: Thermal resistance wet resistance tester
- Weight: 1000.000 kg

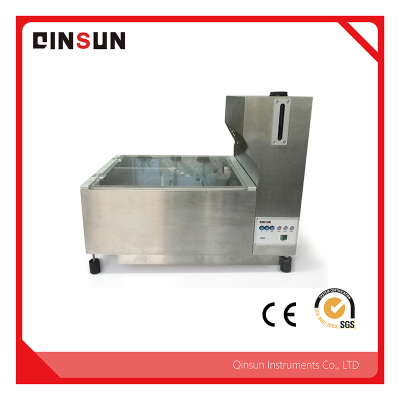

Technical Specifications of Thermal resistance wet resistance tester
Thermal Resistance(RCT) range: 0.002~2.000m2·K/W;
Indication error ≤ ±2%;
Repeatability error ≤ ±2%;
Resolution: 0.001m2·K/W;
Evaporative Resistance(RET) range: 0-1000m2·Pa/W;
Indication error ≤ ±2%;
Repeatability error ≤ ±2%;
Resolution: 0.001m2·Pa/W;
Test plate temperature range: 20℃-50℃, adjustable;
Temperature control accuracy: ±0.03℃;
Temperature measurement: ±0.01℃;
Air velocity: 0~1.2m/s, continuously adjustable;
Air velocity accuracy: ±1%;
The sample platform lift range: 0~70mm, automatic lift;
Sample thickness: 0~70mm;
Test plate area: 250mm×250mm;
Guard ring size: 512mm×512mm, Guard ring width: 127mm;
Dimensions: 770×560×750mm (L×W×H) (not including Climate Chamber);
Weight: 30Kg (not including Climate Chamber);
Host power: AC220V±10%, 100W or AC110V±10%, 100W.
