- Size: 1000
- Place of Origin: China
- Brand Name: QINSUN
- Model Number: TABER 5750
- Weight: 1000.000 kg

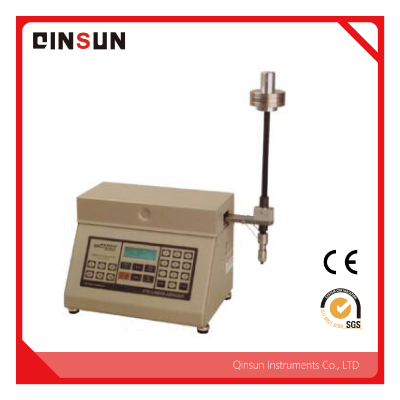

TABER 5750 abrasion testing machine Features:
Used to evaluate the wear resistance, scratch resistance (single or multiple scratches) and color transfer of (usually abrasion discoloration or abrasion fastness) and so on.
Dry abrasion test, wet abrasion test can be carried out.
Abrasion Tester includes a host 5750, three disc-shaped weights 250g, 10 CS-10 and H-18 5 grinding rubber, 50 S-14 sandpaper and wear depth measurement etc.
Linear abrasion tester detailed parameters:
11 kinds of optional moving distance
Moving away from standard 0.2 ", 0.5", 0.61 ", 0.75"
1.0 ", 1.5", 2.0 ", 2.5", 3.0 ", 3.5" and 4.0 "
It can be customized special mobile distance."
Adjustable back and forth moving speed of 2 to 75 / min.
Wherein 2, 15, 25, 30, 40 and 60 back and forth / min six speeds, it has six preset buttons on the operation panel
The number of revolutions:
Can be set up to transfer 999,999 (Note grinding rubber during this time may need to be replaced)
Alternatively load
Standard load range is from 350g to 2100g (250g weight generally random configuration of three weights.) • Variety of optional weight
Abrasion Tester has five selectable moving distances:
Moving away from standard 0.5 ", 1", 2 "3" and 4 "
It can be customized special mobile distance
Adjustable back and forth moving speed of 2 to 75 / min.
Wherein 2, 15, 25, 30, 40 and 60 back and forth / min six speeds, it has six preset buttons on the operation panel
- Size: 1000
- Place of Origin: China
- Brand Name: QINSUN
- Model Number: TABER 5750
- Weight: 1000.000 kg
TABER 5750 wear testing machine main features:
Simulate real conditions of use:
You can set the moving distance, speed, rpm, load and other parameters
Choose a variety of different media and wear parts.
(Optional sample fixing table and other optional accessories, with the scratch, the extent of damage was measured and resistances to alcohol testing, measuring coin scratch resistance and the like.)
Ensure the stability and accuracy of the test:
Grinding its general size and shape as the end of a pencil eraser head are made of high quality wear materials. Ensure the stability for test.
Laser guided placement test samples to ensure the accuracy of the test.
