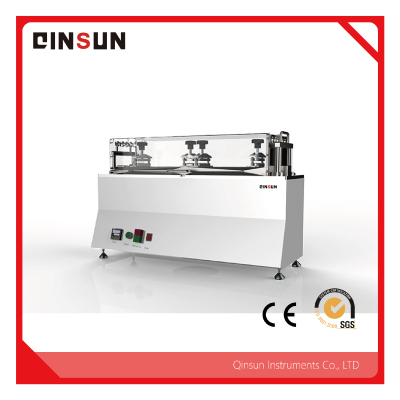

Seam Fatigue Tester Testing Method:

The operator installs the set up gage between one pair of sample clamps on a station. The sewn test sample is aligned and clamped into position.The set up gage is removed and installed on the second station. The second sample is aligned and clamped into position and the set up gage is removed. The desired number of test cycles is entered on the cycle counter and the test is started. Once this cycle count is reached the machine will automatically stop. Test samples are visually evaluated.

Features:

1.Mechanical components are constructed of non-corrosive Aluminum and Stainless Steel.

2.Durable Powder Coat and Anodized finishes.

3.Precision ball and needle bearings.

4.Programmable count-up controller with automatic stop.

5.Adjustable jog and test speed controls.

6.Adjustable weight shelf height.

7.Adjustable clamp separation distance.

8.Vented Protective Cover protects operator hands from pinch points.

Technical Parameters:

1.Stations: 2;

2.Testing load: 3kg;

3.Speed: 30 cycles/minute;

4.Cycle counter: 4 digits (standard of 2500);

5.Stroke: 140mm;

6.Sample clamp separation: 120, 124, 140, adjustable;

7.Sample clamp width: 50mm;

8.External dimension: 13×31×17 inches (L×W×H);

9.Weight: 50kg (110lb).
