Applications:

Scorch/Sublimation Tester is used in the laboratory to evaluate colour fastness to dry heat, hot pressing and sublimation, as well as thermal stability, can perform color fastness test of fabric, chlorine damaged test(resin finishing fabric), yellowing test of bleached fabric, sublimation fastness test for disperse dye, hot water fastness test for reactive dye.

Product Information:

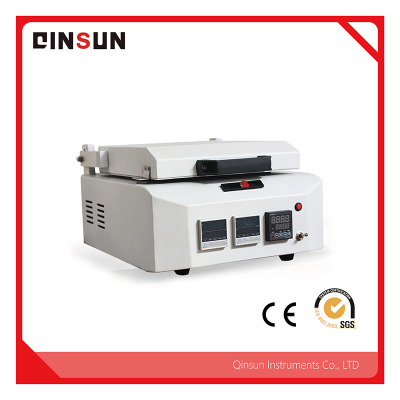

Scorch/Sublimation Tester is used to determine color fastness and shrinkage to hot pressing and dry heat and to conduct sublimation tests. Providing controlled conditions of dry heat and pressure with top and bottom heated surfaces, electronic temperature controller and carefully controlled top plate weight. Temperature of top and bottom plates individually controlled. Two plate size options are available. Temperature range of 120-230℃. Alarm reminding as test ended, made an accuracy control of the testing time.

Technical Parameters:

A.Thermaplate: W100×D40mm, Aluminum (same in up and bottom);

B.Temperature control: independent digital timers with the minimum display of 1℃(one with each of top and bottom plates, respectively);

C.A pre-settable digital timer with alarm reminding;

D.Maximum temperature: 250℃;

E.Thermaplate pressure: 4±1 kPa(40cm2);

F.Heater: cartridge heater with 100V, 150W(one with each of top and bottom plates, respectively);

G.Outside Dimension: W250×D300×H230mm.
