- Size: 1000
- Place of Origin: China
- Brand Name: QINSUN
- Model Number: Rubber Din
- Weight: 1000.000 kg

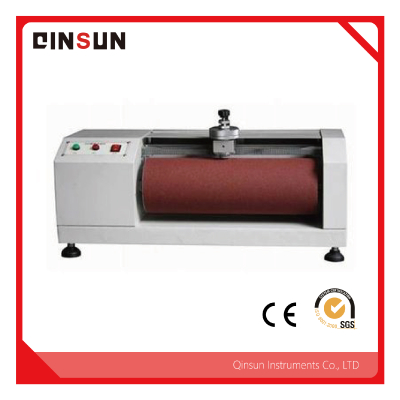

Din rubber abrasion tester main parameters:
The test piece: φ16mm, 6 ~ 15mm (D)
Clamp load: 2.5N
Weight load: 2.5N, 5N
The fixture lateral displacement volume: 4.2mm / wheel every lap
Abrasive cloth: 60 #
Roller Diameter: 150mm
Roller Length: 460mm
The roller speed: 40rpm
predetermined stroke: 40m / 20m
Wear Speed: 0.32m / sec
Inclination: 3 ° test piece and the roller support shaft vertical angle
Volume: 70 × 30 × 30cm
Weight: 61kg
Power source: 1∮, AC220V, 3A
